China factory woodworking cutting machine industrial wood cut off saws

FOB Reference Price:Get Latest Price
$6,000.00 - $10,000.00 / Set | 1.0 Set/Sets (Min. Order)
Model Number:
CRS400 CRS600 CRS800
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 15 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Circular Saw
Use:
Woodworking
Style:
Horizontal
Place of Origin:
China
Brand Name:
ZZCHRYSO
Usage:
Round log cross cut off
Voltage:
380V
Dimension(L*W*H):
8000*2700*3000mm
Certification:
CE ISO
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training
Application:
Cut off big size round log
Weight (KG):
3000 KG
Power (kW):
76.5
After Warranty Service:
Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Key Selling Points:
Automatic
Applicable Industries:
Round log cutting
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
PLC
Name:
Automatic CNC Round Log Cross Cutting Saw Machine
Model Number:
CRS400 , CRS600, CRS800
Cutting diameter (mm):
400-800mm
Motor Power(kw):
35,41,45kw
Feeding speed:
Frequency
Blade size:
800mm,1100mm
Min cutting length:
500mm
Max cutting length:
Customized
Capacity:
20-50 cubic metres/h
Weight:
2500,3000,4000kg
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
Guangzhou Port China
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 15 25 To be negotiated

Automatic CNC Round Log Cross Cutting Saw Machine



Whole saw machines production line plan for your choice:

1.Large scale round log cut off saw  machine produciton line



2.Multi blade rip saw machine production line(Cutting round log and square wood )

Saw machines produciton line Customized available as customer details requirements .

Product Description

 Introduction of round log cross cutting saw

It can cut logs of diameter from 100mm to 800mm (Details see specification table for your reference), can cut 5 different sizes at one time, V-chain feeding is more stable and suitable for conveying all kinds of irregular wood.



Characteristics and application of round log cross cutting saw

1.The large scale automatic round log cutting saw machine equipment is suitable for cutting large diameter logs(Diameter 400mm-800mm).

2.The different length of cutting can be adjusted at one time .

3.It has advantage of accurate cutting size, high efficiency and labor saving .

4.The equipment can be customized according to details requirements.

5.V shape chain feeding system is more stable for feeding all kinds of irregular wood.

6.Possible customized production line according to your final product requirements.

7.Optional support roller feeding , automatic discharge system.



For large size square wood cross cutting :

Details Specification of round log cross cutting saw



Model

CRS400

CRS600

CRS800

Cutting diameter (mm)

100-400

100-600

200-800

Size(mm)

5000*2300*2000

8000*2300*2000

8000*2700*3000

Min.Machining length(mm)

500

800

800

Max.Machining length(mm)

Customized

Customized

Customized

Total power(kw)

35

41

45

Main spindle speed (rpm)

1470

2900

2900

Main spindle motor(kw)

22

15kw*2

22kw*2

Feeding speed

Frequency

Frequency

Frequency

Weight

2500

3000

4000

Capacity(/h)

20

40

50

Saw blade diameter* Quantity*Saw line

1100mm*1*8.0mm

800mm*2*6.5mm

1100mm*2*8.0mm





Company Information

 Production show :



Working site sample :



Related Products

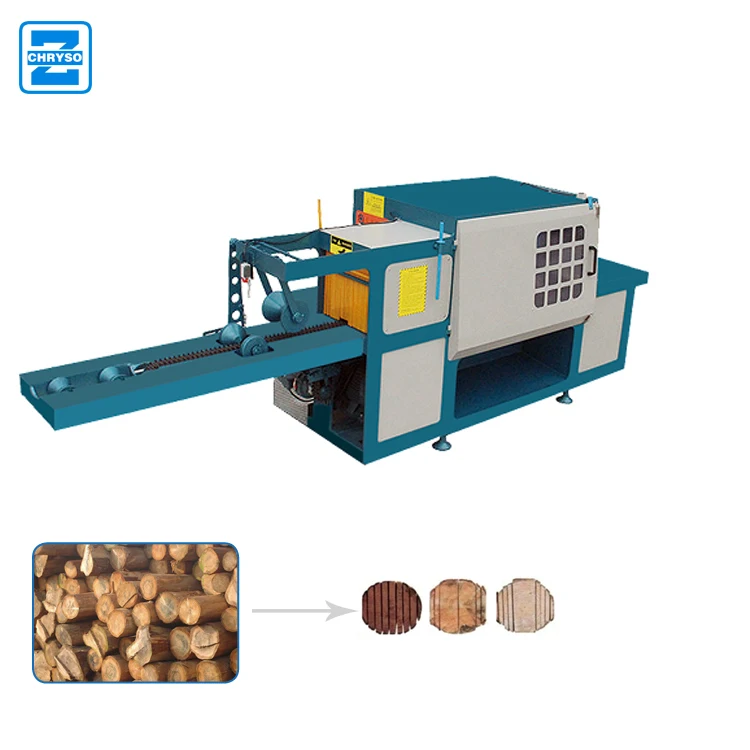

Multi blade rip saw machine for round log

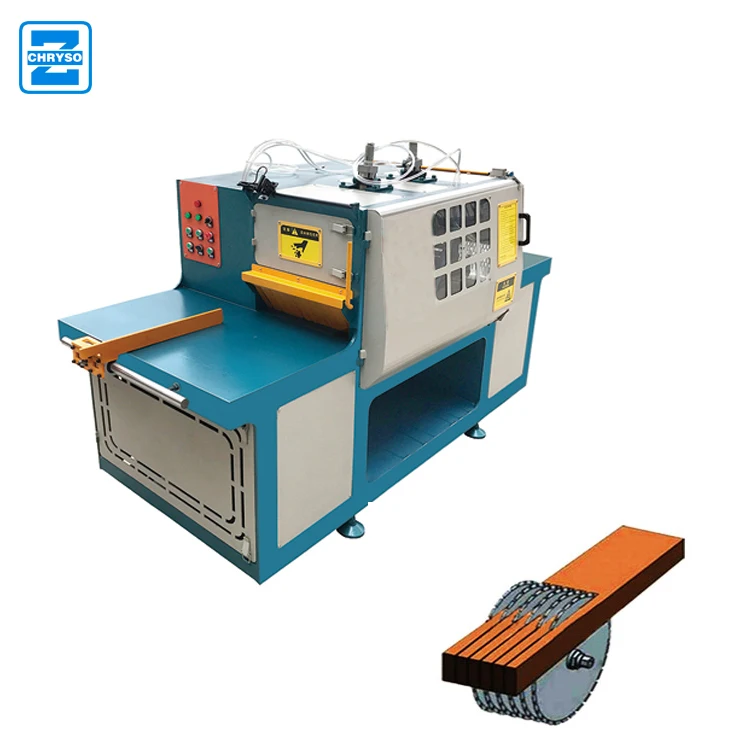

Square wood multi blade rip saw machine

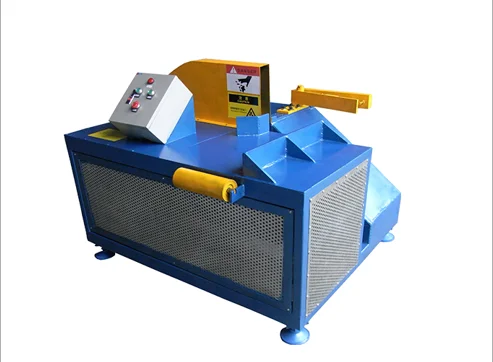

Wood cross cut off saw machine for small diameter :

Packaging & Shipping

 Machine pakage :



Machine load in container :



Our Services

We provide 7*24 sales service.When you need us,we will always be there for you!



*Everything you need in one place;

*Save your money with quality products;

*Our professional knowledge and experience in this field supporting your business;

*After-sales maintenance and service (delivery of spare parts, regular service, consulting);

*Conducting pre-commissioning at a customer and staff training;





FAQ


1.How to choose the suitable model for my business?

Tell us yuur reqirment for machine and our sales team will work with engineer to outline the best mode for you.



2.Do I need assemble the machine when it reach to my place?

No need,the machine is installed before shippment.



3.What should I do,if I do not know how to use the model?

We have machine operation video and paper manuel for your study before putting into usage.



4.Is the spare part available when I need?

Yes,all the spare parts are available all the year at factory cost.
